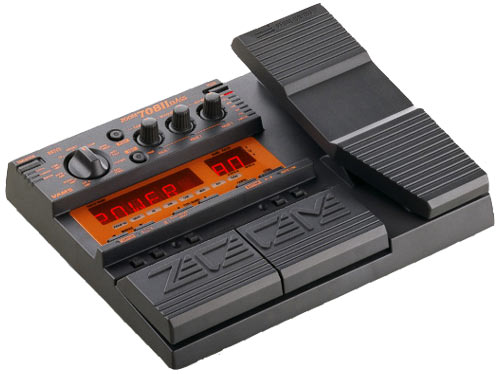

Introducing the latest product in the Zoom tradition: The new 708II Effects pedal with Smart Media Capabilities. An awesome array of features and effects, in an amazingly compact package.
  • 69 Different Effect Types, 9 Effects Simultaneously
    The 708II offers 69 different effects, available within 7 effect modules, compatible to latest bass guitar sounds.

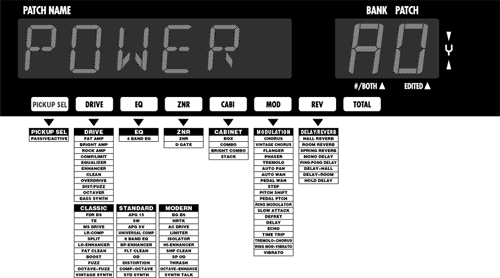

7 EFFECT MODULES
Pickup selector Adjust the input sensitivity for Active or Passive pickup
Drive Pick from 33 types of amp modeling and bass guitar effects
4 band EQ Boost or cut four frequency range-High, Mid-high, Mid-low, and Low
Noise reduction Includes Zoom Noise Reduction (ZNR) and a Noise-Gate
Cabinet Cabinet simulator reproduces the tone of all the great cabinets
Modulation A variety of effects like Chorus, Phase, Pitch-shift, Flange, Wah and more
Delay / Reverb Produces several classic ambient effects

Enlargement,click here
  • 33 types of Amp Modeling & Bass Effects
    Thanks to the use of Zoom VAMS (Variable Architecture Modeling System), the drive module contains 11 "personalities" including 3 Amplifier modeling and 8 Bass oriented effects. Each personality has 3 styles: Classic, Standard and Modern. Therefore, a total of 33 types of bass sounds are available. These personalities, such as fat amp, bright amp, rock amp, compressor, limiter, 8 band EQ, isolator, enhancer, overdrive, distortion, fuzz, octaver and bass synth, can be selected or changed easily using a dedicated knob and button anytime.
  • 120 Kinds of Practical Patches
    By combining effects and settings for each parameter, the user can create, edit and store 60 patches. Together with the 60 pre-set patches, a total of 120 patches are available. The Foot Switch can be used to change patches instantly. Using the patch swap function, you can easily arrange patch sequence to match the playlist of a live performance.
  • 3 Analog Knobs Offer Easy Editing
    When you want to change or create effects, 3 parameters can be modified at once using the analog knobs. You can independently adjust multiple parameters that affect each other, such as the Gain/Tone/Level of the Drive, the Speed/Depth/Mix of the Chorus, or Time/Tone/Mix of the Reverb, simultaneously. While in Play mode these 3 knobs are assigned as follows: 1.Main drive parameter, 2.Main modulation parameter, 3.Mix balance of Reverb/Delay. You can fine tune these to match any performance condition.
  • Built-in Expression Pedal
    An expression pedal is built-in. Using a dedicated pedal assignment key, you can easily change its function anytime. Also, different settings for each patch can be checked by looking at the LED indicators. You can adjust and store minmum and maximum value for each patch using the expression pedal for wah-wah, volume, or speed.
PEDAL FUNCTIONS
Pedal wah-wah
Pedal pitch shift
Speed or Depth parameter
Drive gain
Mix balance of Delay or Reverb
Master volume
Turn the sampler function ON/OFF
  • Designed For Live Performance
    Zoom's live performance design philosophy is featured at every critical point. The 708II features a large display for patch names, numbers and banks, that is highly visible on a dark stage. Extremely portable, compact, and light-weight the 708II has a dual power supply system for batteries or AC power, a low power consumption circuit that allows for 11 hours of use on alkaline batteries, and easy-to-read auto chromatic tuner.
  • Drum Machine Function
    60 different rhythm patterns are included. They cover a wide variety of genres, from basic 8- and 16-count beats, to pop and dance rhythms. Inheriting the drum machine technology of our popular RhythmTrak Series, the PCM sound makes it possible to practice using real drum sounds, not just a metronome.
  • Sampler Function
    Up to 6 seconds of your favorite guitar sounds or musical phrases can be sampled through the AUX IN. Using an optional 128 MB Smart Media card, the sampling time can be expanded to 32 minutes. Using a foot pedal, sampled sounds can be played once, or looped indefinitely. Built-in data storage is 16 bit un-compressed high quality sound. You can slow down the re-play speed of a sample up to 25 percent without changing the pitch--excellent for phrase training.
  • Patch-Sync Function
    60 effect patches can be linked with 60 drum patterns, and 60 files of sampled sound. You can perform highly sophisticated playing techniques with simple operations, such as changing effects and drum patterns together while playing, or re-playing different sampled sounds with each patch.
  • Using Smart Media Cards (optional)
    Using a 32 MB Smart Media card as expansion memory, you can store up to 60 files for the sampler and 5 groups of patch memory. Using a Smart Media reader/writer with a USB interface, Smart Media card can also be used as an interface between the 708II and your PC. You can back up data, as well as exchange patches and samples on the Internet.







REAR PANEL







SPECIFICATIONS

œEffect TypeF69 œEffect ModuleF7 œMaximum Simultaneous EffectsF9 œPatch MemoryF120iUser60+Preset60j œSampling FrequencyF31.25kHz œA/D ConversionF20bit 64times oversampling œD/A ConversionF20bit 8times oversampling œBass InputF1/4"Phone Jack ~1 œNominal Input LevelF|20dBm œInput ImpedanceF470kƒ¶ œAUX InputF1/8"Stereo phone jack ~1iNominal input levelF|20dBm, input impedanceF20kƒ¶j œOutputiUsed as both line and headphonejF1/4"Stereo phone jack ~1 œMaximum Output LevelF+3dBmiat load impedance 10kƒ¶ or morej œDisplay:6digit alphanumeric LED, 2digit 7segment LED, Pedal Assign LED ~7, Drive variation LED ~3, Module LED ~9 œMaximum sampling timeiwithout Smart MediajF6seconds œSampler playback speedF~1, ~1/2, ~1/4 œPreset rhythm patternF60œPower RequirementFAA sizeiLR6j Battery ~4iOptionalj, or AC Adaptor DC9V/300mA/Center Minus typeiOptional, AD-0006 recommendedj œBattery lifeF11hours or more iAlkaline typej œDimensionF249iWj~195iDj~57iHj mm œWeightF860g (without batteryj œOptional accessoryFSmart Mediai16MB`128MB, 3.3Vj, AD-0006, AA size Battery *0dBm=0.775Vrms
